二硫化铌晶体 2H-NbS2(Niobium Disulfide)
晶体尺寸：2毫米
电学性能：金属，superconductor (Tc~6K), charge density waves (CDW) system.
晶体结构：六边形
晶胞参数：a = b = 0.332 nm, c = 1.197 nm, α = β = 90, γ = 120°
晶体类型：合成
晶体纯度：＞99.995%

X-ray diffraction on a single crystal 2H-NbS2 aligned along the (001) plane. XRD diffraction was performed at room temperature using a D8 Venture Bruker. The 4 XRD peaks correspond, from left to right, to (00l) with l = 2, 4, 6, 8

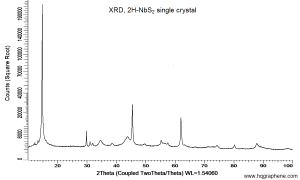

Powder X-ray diffraction (XRD) of a single crystal 2H-NbS2. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.
