Luminosyn™ PBDB-T (PCE12) is now available, featuring:
High purity - PBDB-T is purified by Soxhlet extraction with methanol, hexane and chlorobenzene under an argon atmosphere.
Batch-specific GPC data - so you have confidence in what you are ordering. Also, GPC data is always convenient for your thesis and publications
Large-quantity orders - so you can plan your experiments with polymers from the same batch
价格
| Batch |
Quantity |
Price |
| M1002 |
100 mg |
6422.00 |
| M1002 |
250 mg |
10034.38 |
| M1002 |
500 mg |
16777.48 |
| M1002 |
1g |
27454.05 |
| M1002 |
2g |
50059.49 |
*for 5 - 10 grams order quantity, the lead time is 4-6 weeks.
Batch Details
| Batch |
Mw |
Mn |
PDI |
| M1001 |
117,406 |
58,737 |
2.0 |
| M1002 |
70,532 |
33,138 |
2.1 |
General Information
| Full name |
Poly[(2,6-(4,8-bis(5-(2-ethylhexyl)thiophen-2-yl)-benzo[1,2-b:4,5-b’]dithiophene))-alt-(5,5-(1’,3’-di-2-thienyl-5’,7’-bis(2-ethylhexyl)benzo[1’,2’-c:4’,5’-c’]dithiophene-4,8-dione)] |
| Synonyms |
PBDB-T, PBDTBDD |
| CAS number |
145929-80-4 |
| Chemical formula |
(C68H78O2S8)n |
| HOMO/LUMO |
HOMO = -5.33 eV, LUMO = -2.92 eV [3] |
| Suggesting solvents |
Chloroform, chlorobenzene, dichlorobenzene |
| Classification/Family |
Organic semiconducting materials, Medium band-gap polymers, Organic Photovoltaics, Polymer solar cells, Perovskite solar cells, Hole-transport layer materials, NF-PSCs, All-polymer solar cells (all-pscs). |

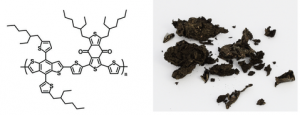

Chemical structure and product image of PBDB-T (PCE12); CAS No. 145929-80-4, Chemical formula: (C68H78O2S8)n.
Applications
PBDB-T (PCE12) is one of the highest-performing donor polymers for OPVs, having reported efficiencies exceeding 12% [1, 2], and a certified efficiency approaching 11% [3]. These efficiencies were achieved when PBDB-T was used in conjunction with recently-reported non-fullerene acceptors (NFAs, including ITIC) in inverted architecture devices. These devices also exhibited excellent thermal stability, making the combination a promising candidate for the proposed 10/10 target of 10% efficiency and 10-year lifetimes.
PBTB-T (PCE12) is easy to process, simplifying device fabrication while simultaneously providing high performance.
Due to good HOMO alignment with the valence band of commonly-used perovskites, this polymer could also be potentially used as a hole-transporting material in perovskite solar cells .
