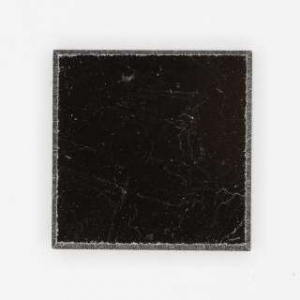

高定向热解石墨 HOPG-ZYA-1mm
最高质量
晶体尺寸：横向~12mm，厚度1mm
电学性能：金属
晶体结构：六边形
晶胞参数：a = b =0.246, c = 0.667 nm, α = β = 90°, γ =120°
晶体类型：合成
晶体纯度：>99.995%
旋 转 角：0.4° +/- 0.1°

X-ray diffraction on a HOPG single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 3 XRD peaks correspond, from left to right, to (00l) with l = 1, 2, 3
