在许多工业领域中，表面粗糙度测量起着重要的作用，德国HALLE提供各种国际标准的计较校准片，如粗糙度校准，深度校准，平坦度校准等，所有计量校准片均由PTB或DKD认证证书；
Depth-Setting-Standard with round grooves
Line of products:KNT 2060/01
Corresponding to PTB-Standard for adjusting and calibration of the vertical magnification of contact stylus instruments 3 grooves 1/4/9 um (nominal)
Item NO.:2060/01/3/PK (PTB calibration)
Designation |
ISO-Type 5436-1 |
Design |
Line of product |
Picture |

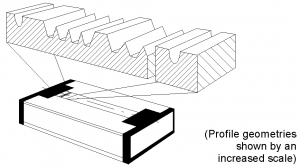

Stylus tip control standard |
Type B |
3 x 3
taper angles with |
KNT 4050/01 |
|

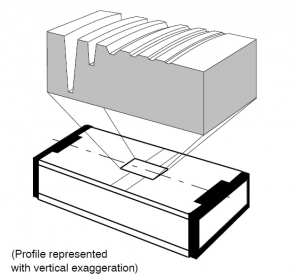

Depth setting standards |
Type A |
with round
base grooves |
KNT 4060/03 |
|
Depth setting standards |
Type A |
with planar grooves |
KNT 4080/03 |
|

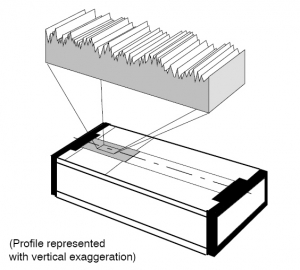

Roughness measurement |
Type D |
standard |
KNT 4058/01 |
|

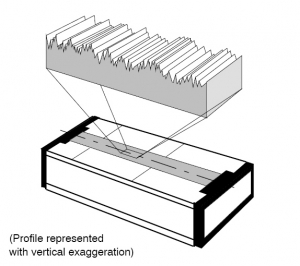

Roughness measurement |
Type D |
inexpensive version |
KNT 4058/03 |
|

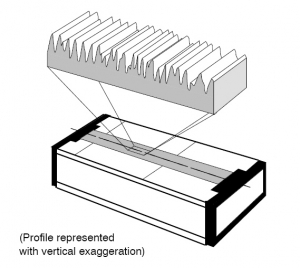

Roughness measurement |
Type D |
for sheet metal surfaces |
KNT 4058/02 |
|
Roughness measurement |
Type D |
for sheet
metal measuring |
KNT 2058/05 |
|
Roughness measurement |
Type D |
superfine roughness profile |
KNT 4070/03 |
|
Calibration costs |
|
|
|
|

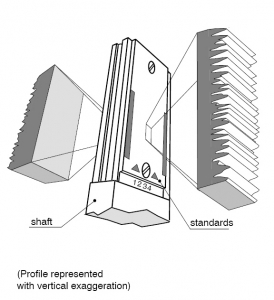

Comparison standards |
|
|
VOR 2090/01 |
|

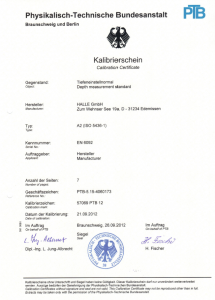

PTB Certificate
