电学性能：半金属，电荷密度波（CDW，~ 63K），超导体（TC ~ 2K）
晶体结构：单斜磷
晶胞参数：a = 0.5864nm，B = 0.3918nm，C = 1.009nm，α=γ= 90°，γ= 98
晶体类型：合成
晶体纯度：＞99.995%
表征方法：XRD、拉曼、EDX

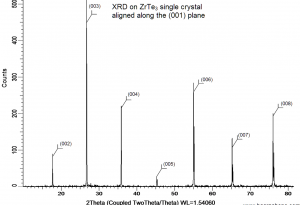

X-ray diffraction on a ZrTe3 single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 5 XRD peaks correspond, from left to right, to (00l) with l = 2, 3, 4, 5, 6, 7, 8

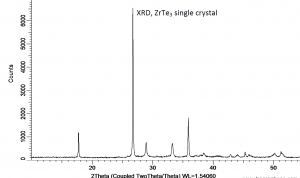

Powder X-ray diffraction (XRD) of a single crystal ZrTe3. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

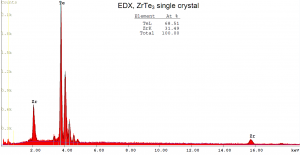

Stoichiometric analysis of a single crystal ZrTe3 by Energy-dispersive X-ray spectroscopy (EDX).

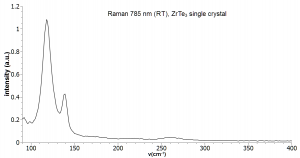

Raman spectrum of a single crystal ZrTe3. Measurement was performed with a 785 nm Raman system at room temperature.
