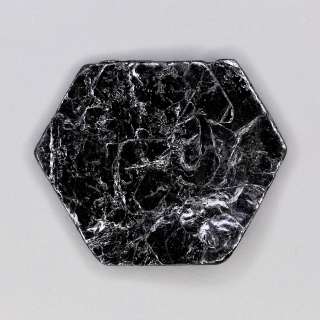

大尺寸二硫化钼晶体（天然/99.9%） MoS2(Molybdenum Disulfide)
晶体尺寸：~10毫米- 15毫米
电学性能：半导体
晶体结构：六边形
晶胞参数：a = b = 0.315 nm, c = 1.229 nm, α = β = 90°, γ = 120°
晶体类型：合成
晶体纯度：＞99.9%

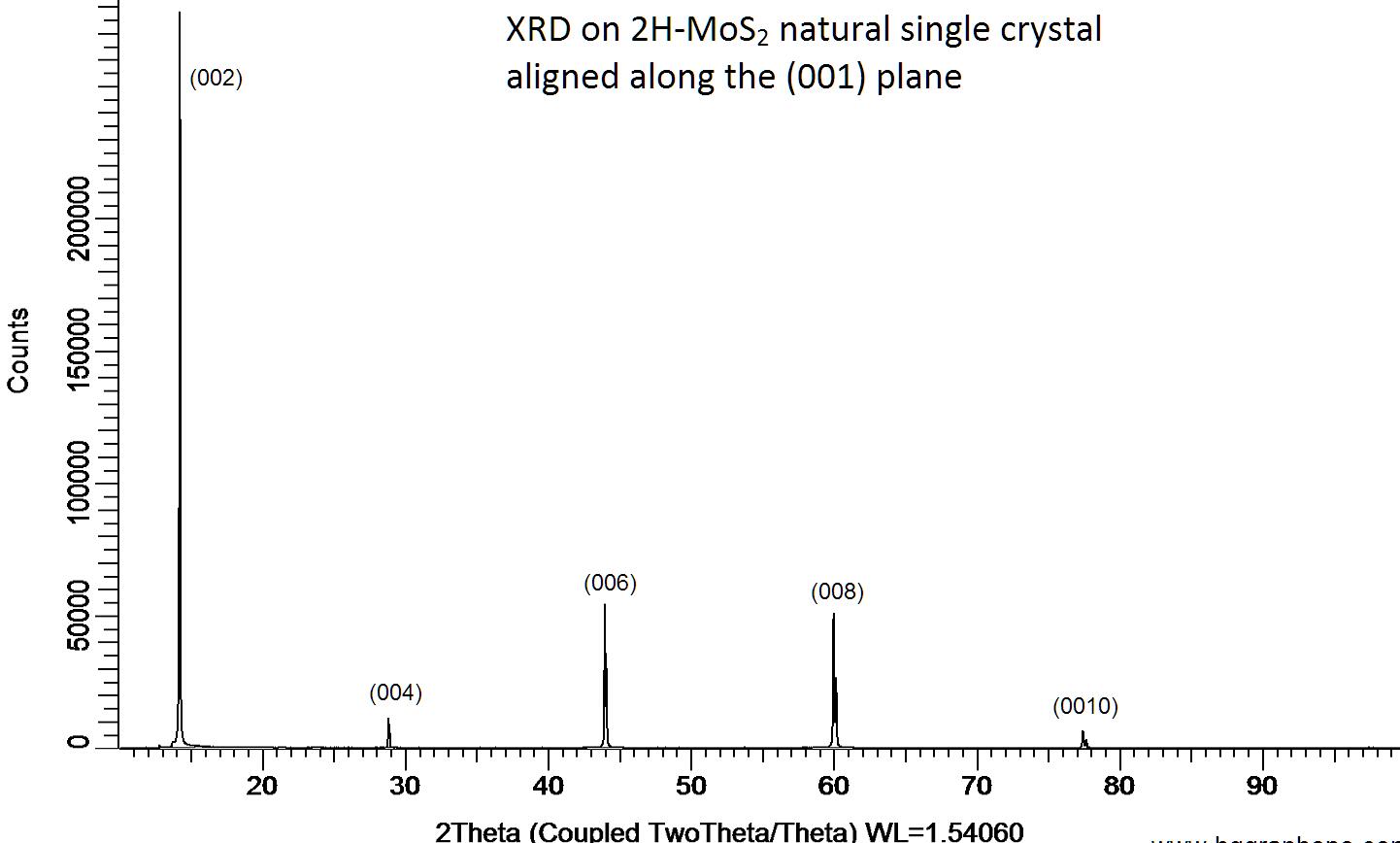

X-ray diffraction on a natural MoS2 single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 5 XRD peaks correspond, from left to right, to (00l) with l = 2, 4, 6, 8, 10

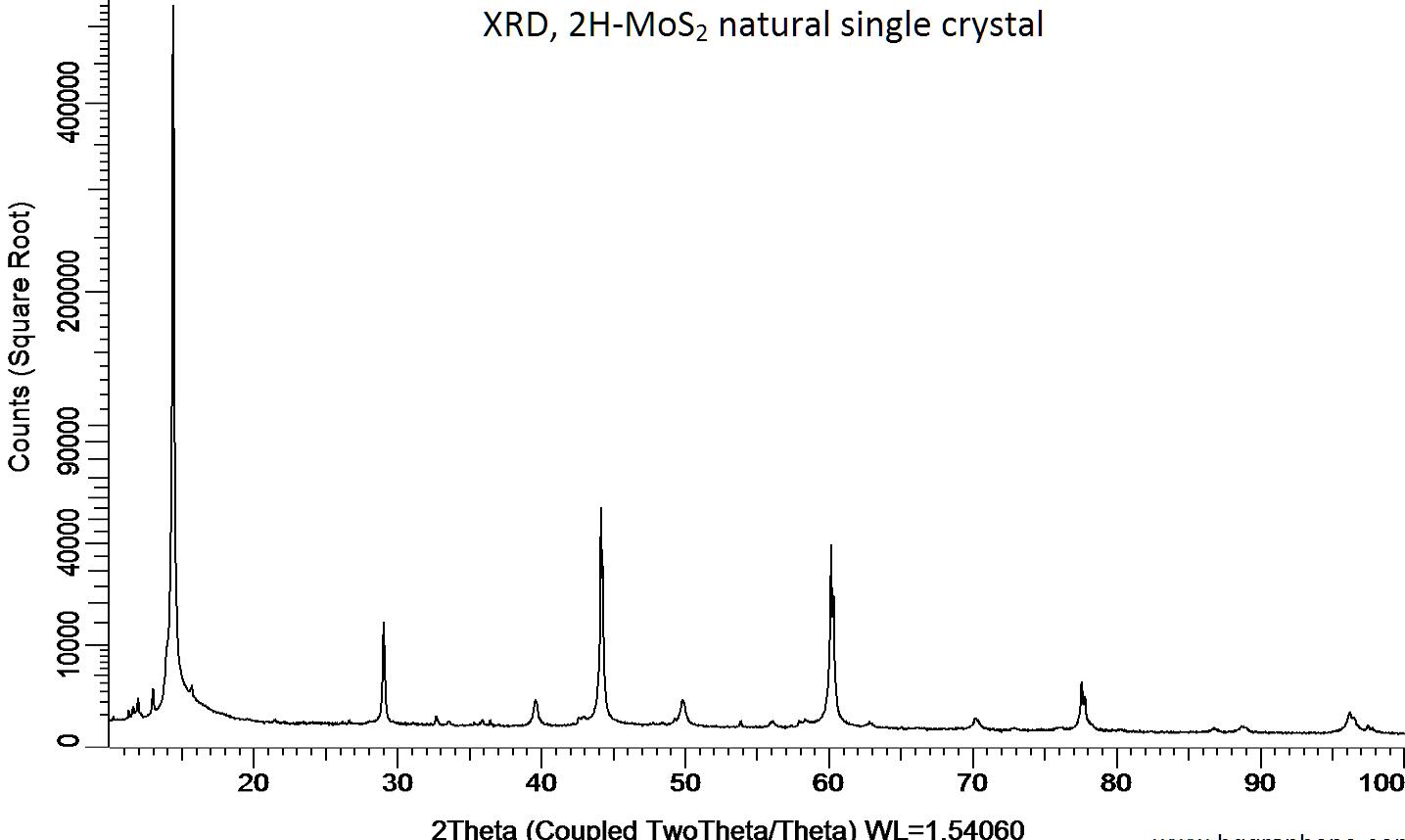

Powder X-ray diffraction (XRD) of a natural MoS2. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

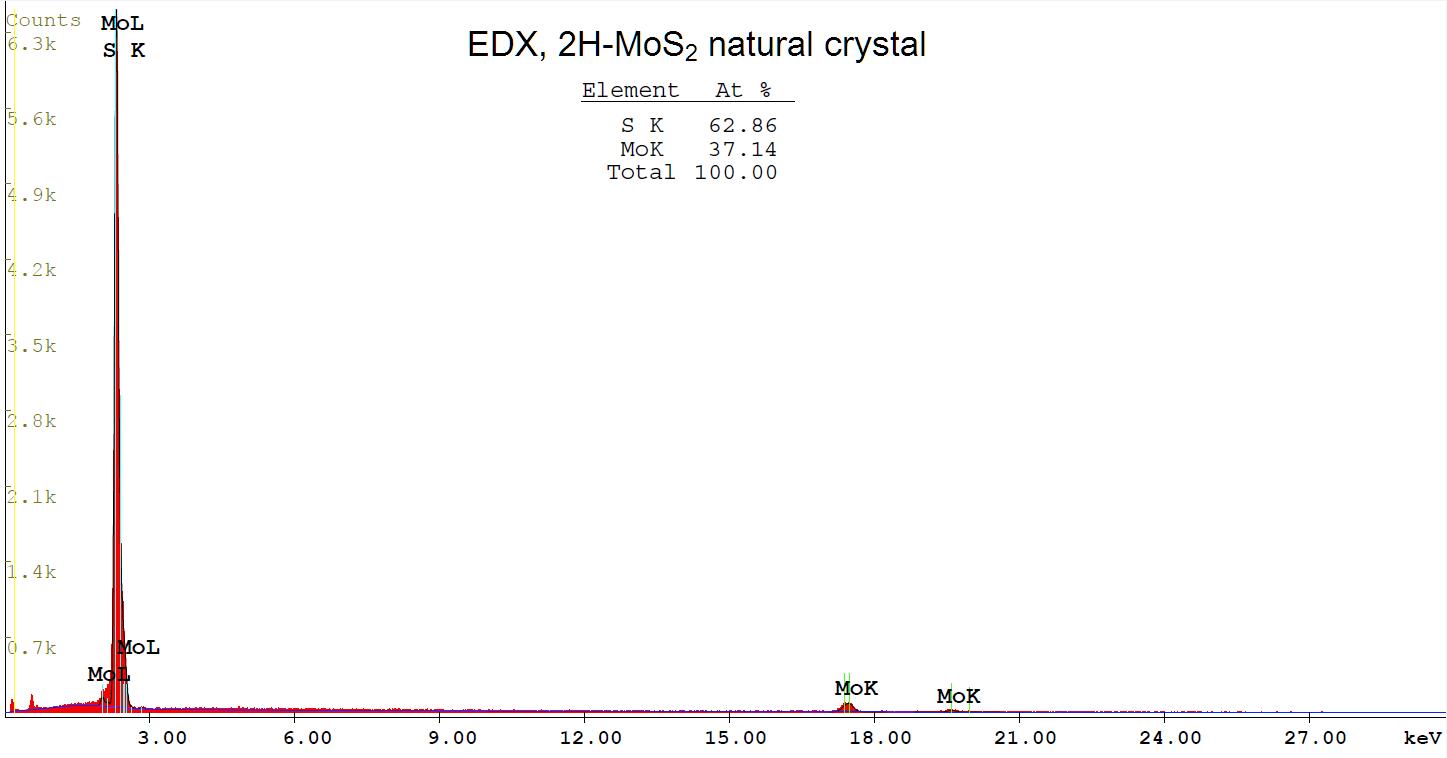

Stoichiometric analysis of a natural crystal MoS2 by Energy-dispersive X-ray spectroscopy (EDX).

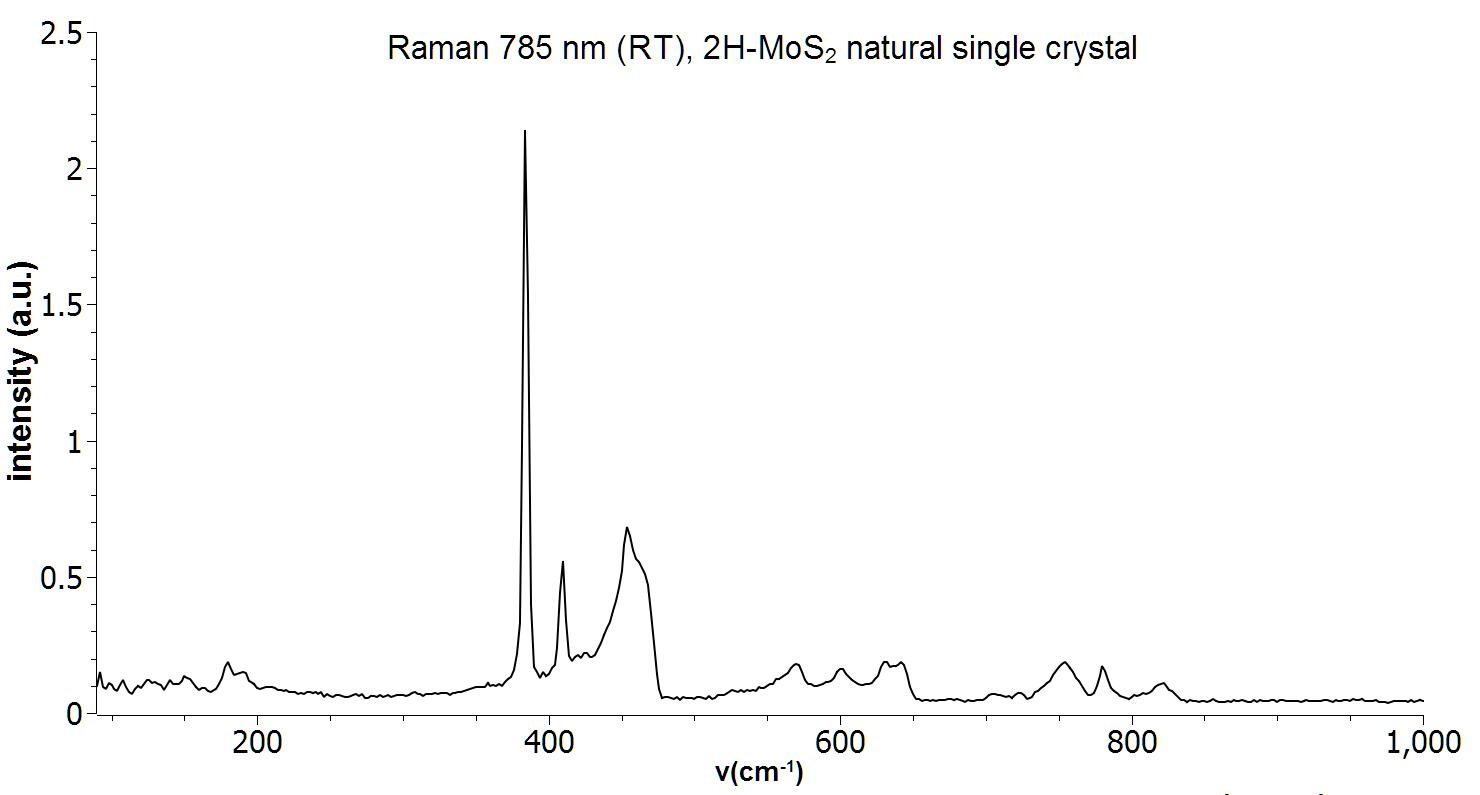

Raman spectrum of a natural MoS2. Measurement was performed with a 785 nm Raman system at room temperature.
