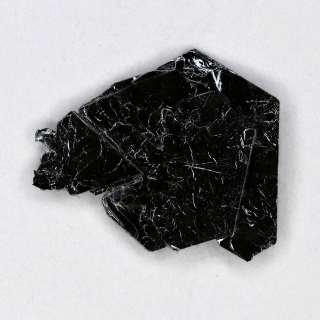

二硫化钽晶体(2H) TaS2(Tantalum Sulfide) -2H
晶体尺寸：~10毫米
电学性能：Metal, Charge density waves (CDW) system below ~75K, Superconductor with Tc ~1K
                 金属、电荷密度波(CDW)
晶体结构：六边形
晶胞参数：a = b = 0.331 nm, c = 1.207 nm, α = β = 90, γ = 120°
晶体类型：合成
晶体纯度：＞99.995%

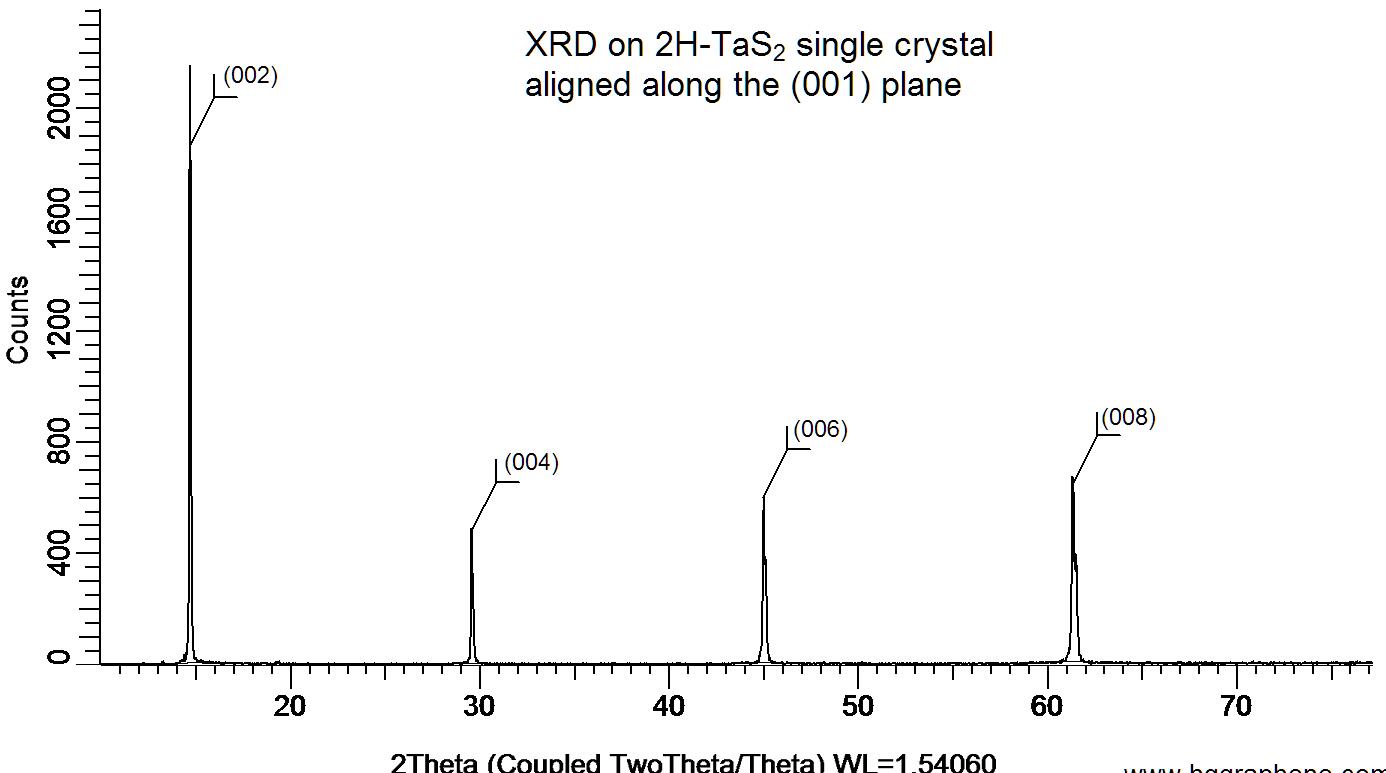

X-ray diffraction on a 2H phase Tantalum Disulfide single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 4 XRD peaks correspond, from left to right, to (00l) with l = 2, 4, 6, 8

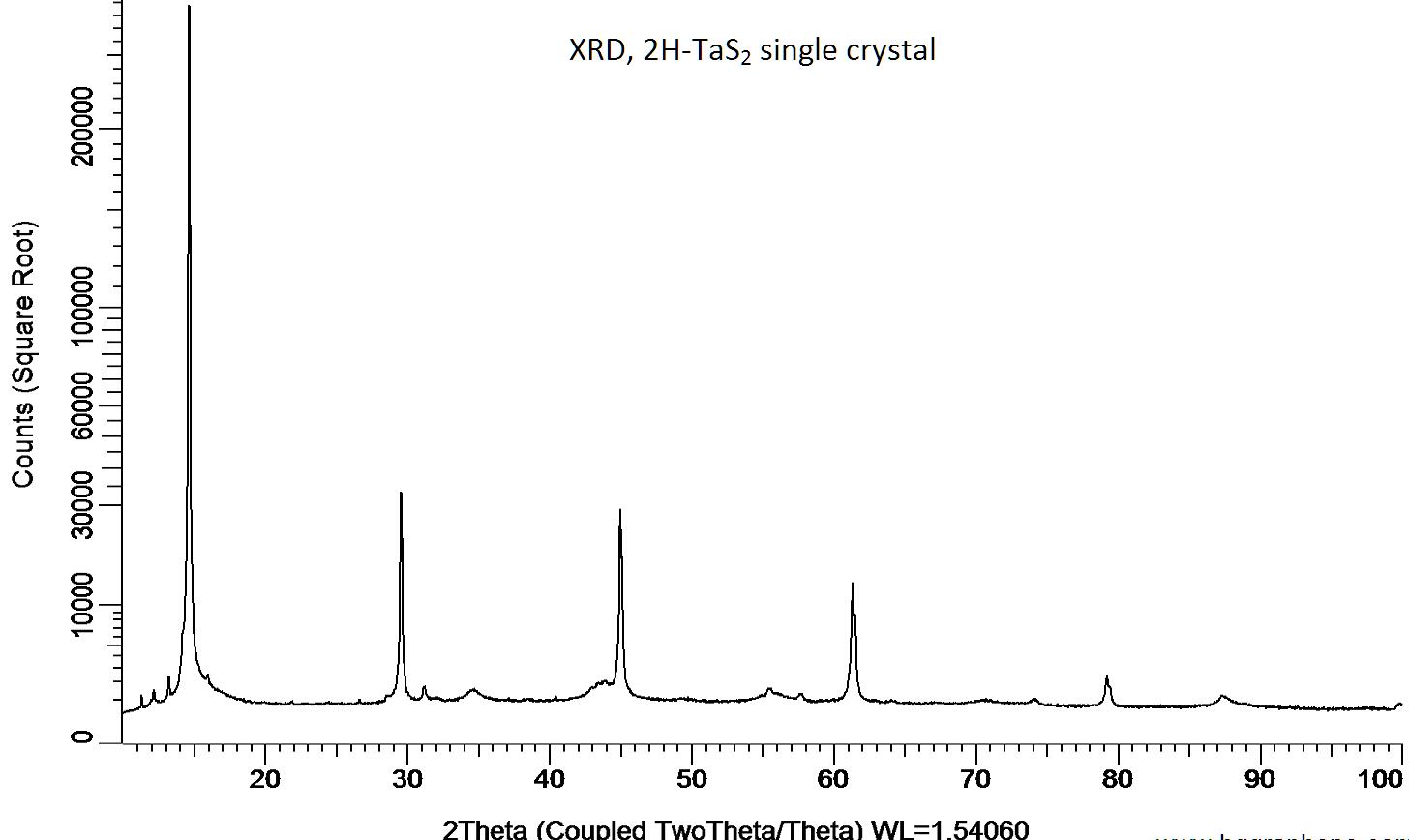

Powder X-ray diffraction (XRD) of a single crystal 2H-TaS2. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

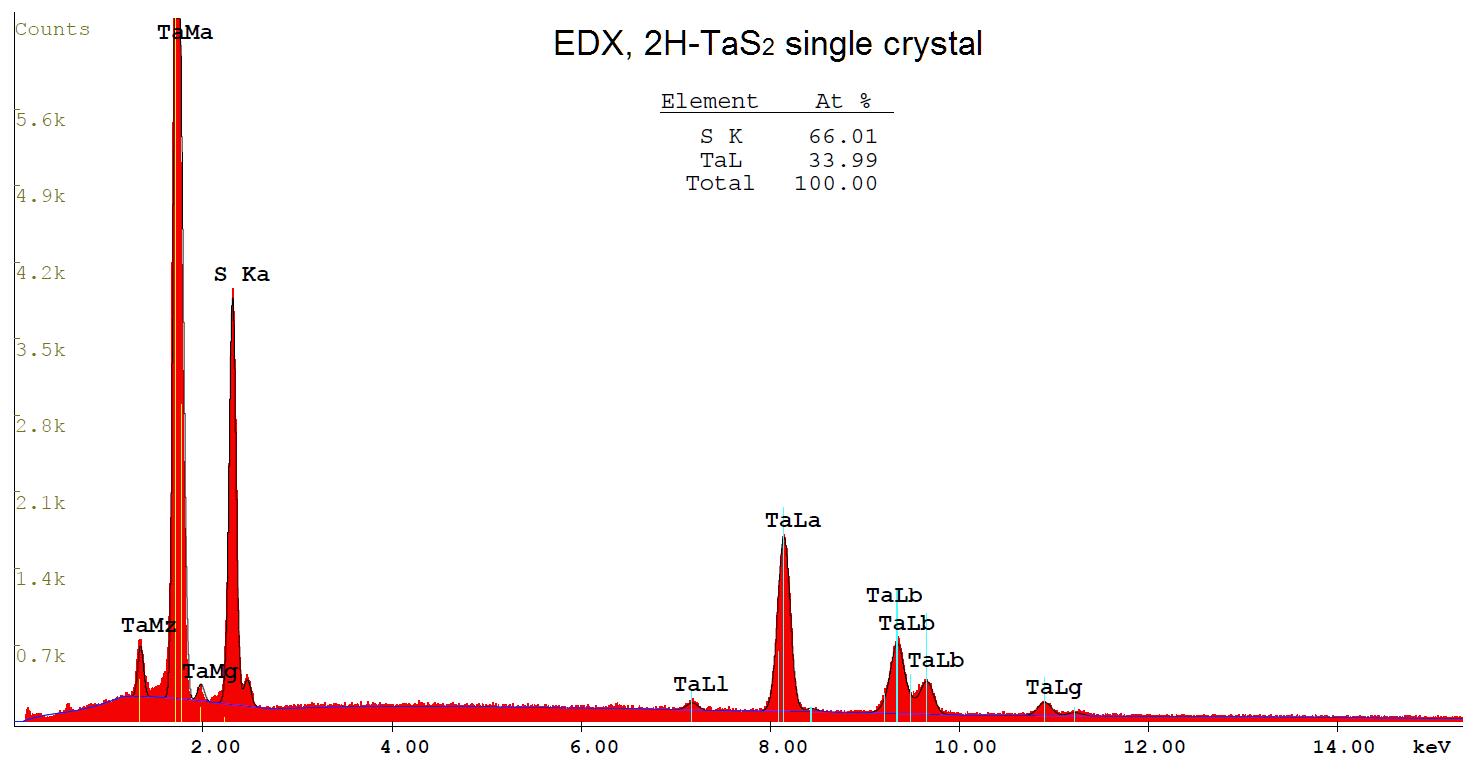

Stoichiometric analysis of a single crystal 2H-TaS2 by Energy-dispersive X-ray spectroscopy (EDX).

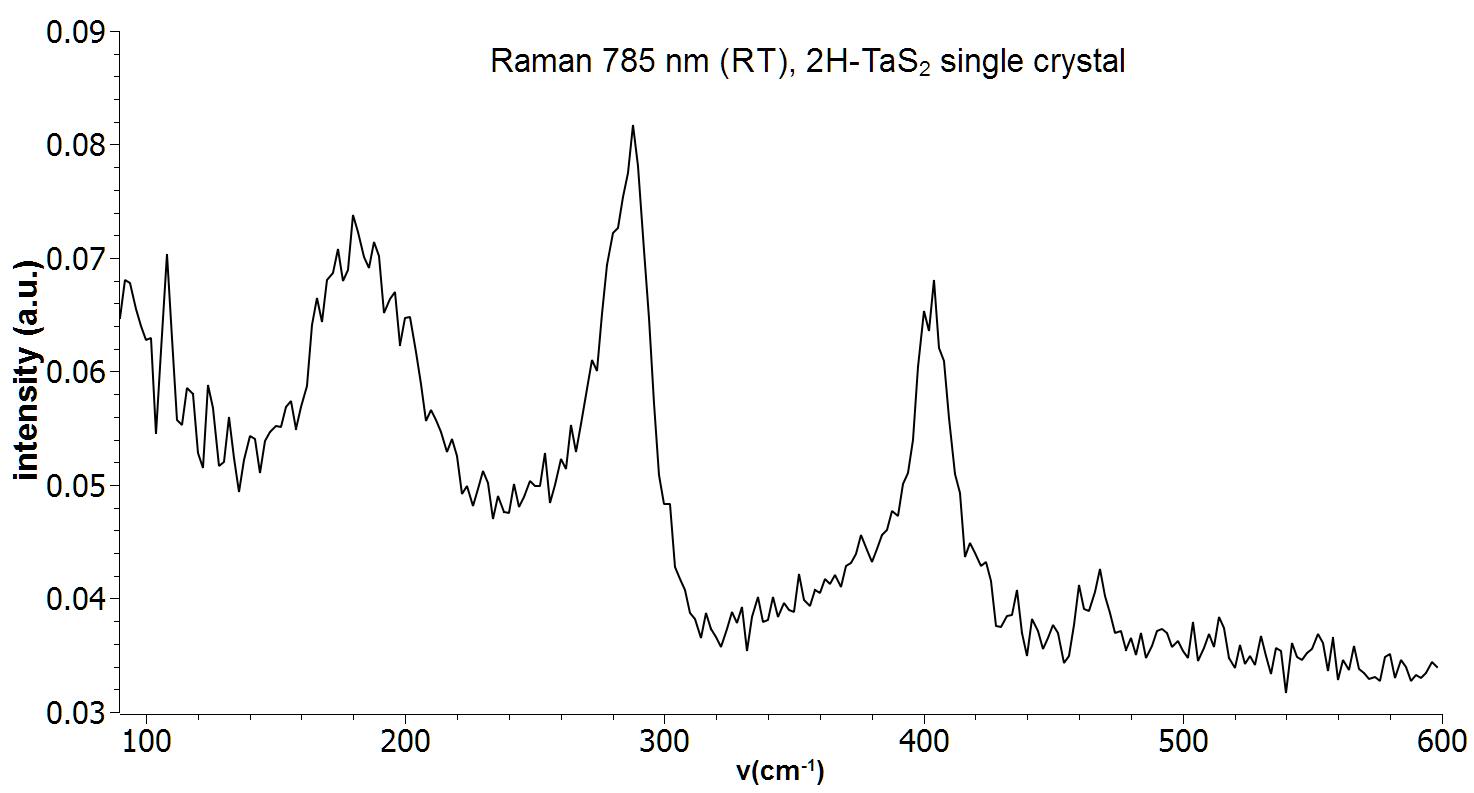

Raman spectrum of a single crystal 2H-TaS2. Measurement was performed with a 785 nm Raman system at room temperature.
