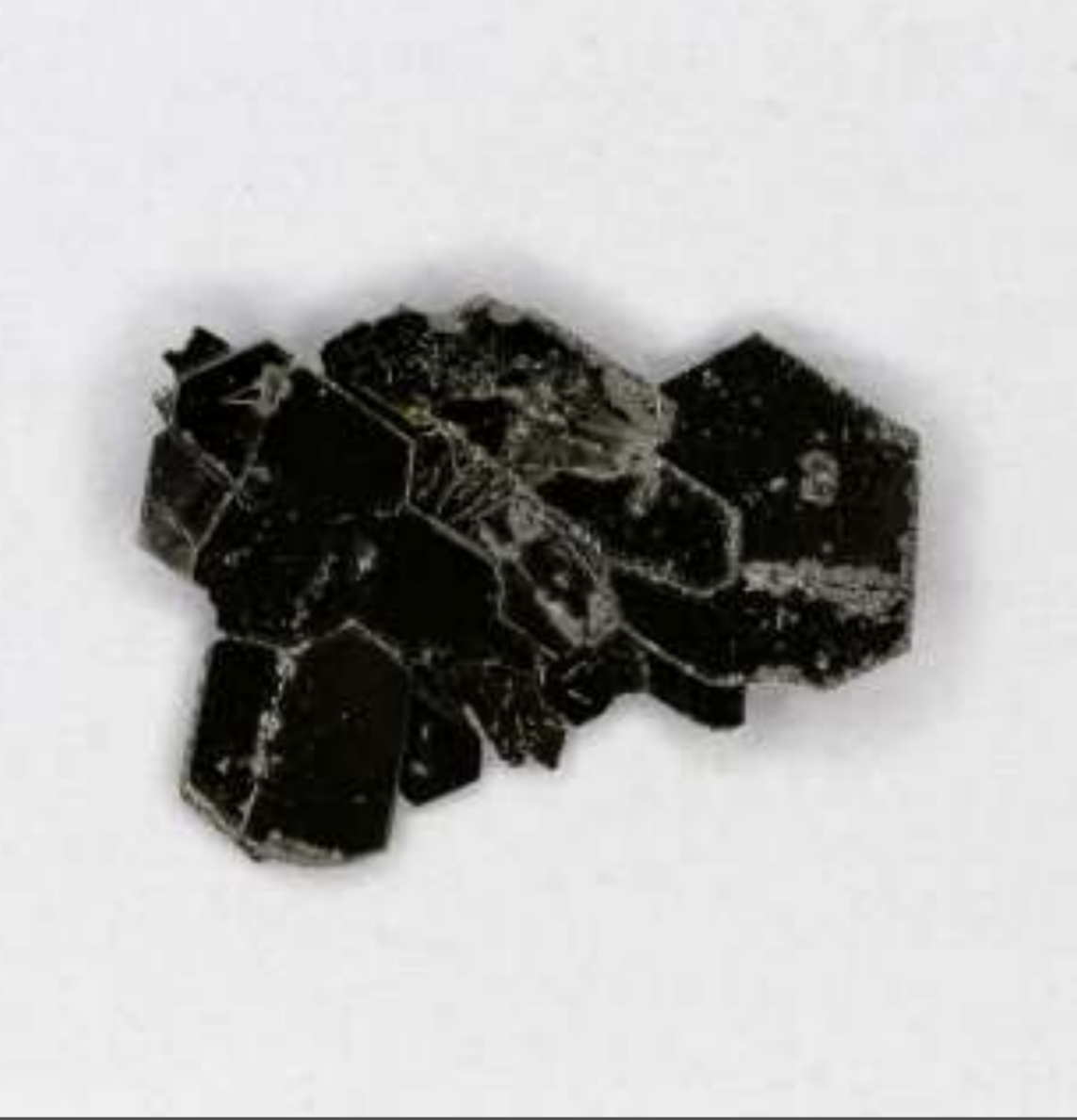

二碲化铌晶体 NbTe2(Niobium Selenide)
晶体尺寸：~8毫米
电学性能：金属，半导体（TC ~ 0.7k）
晶体结构：单斜晶系，C
晶胞参数：a＝1.470 nm，b＝0.364，c＝0.935 nm，α＝γ＝90°，β＝108°
晶体类型：合成
晶体纯度：＞99.995%

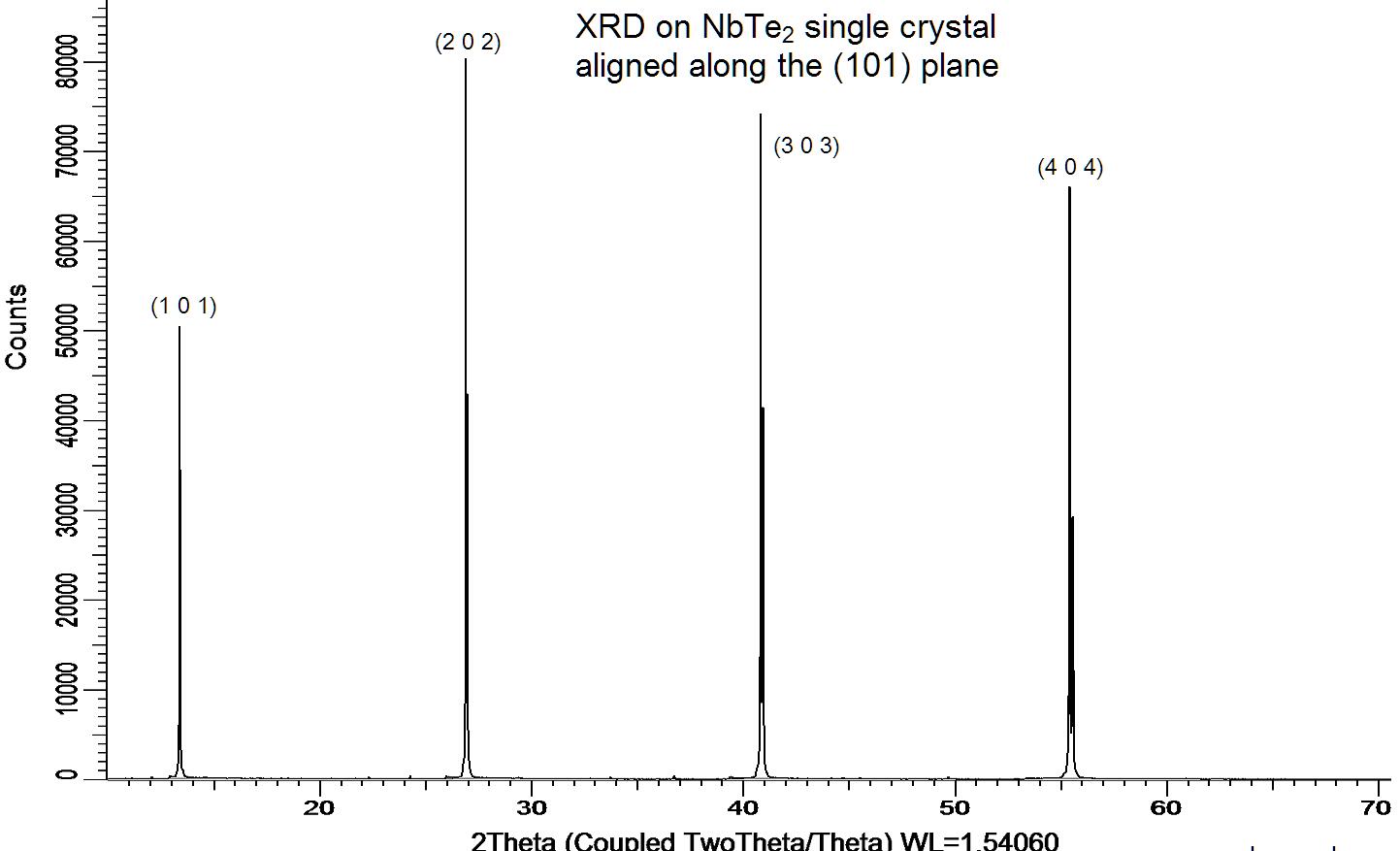

X-ray diffraction on a NbTe2 single crystal aligned along the (101) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 4 XRD peaks correspond, from left to right, to (h 0 l), with h = l = 1, 2, 3, 4

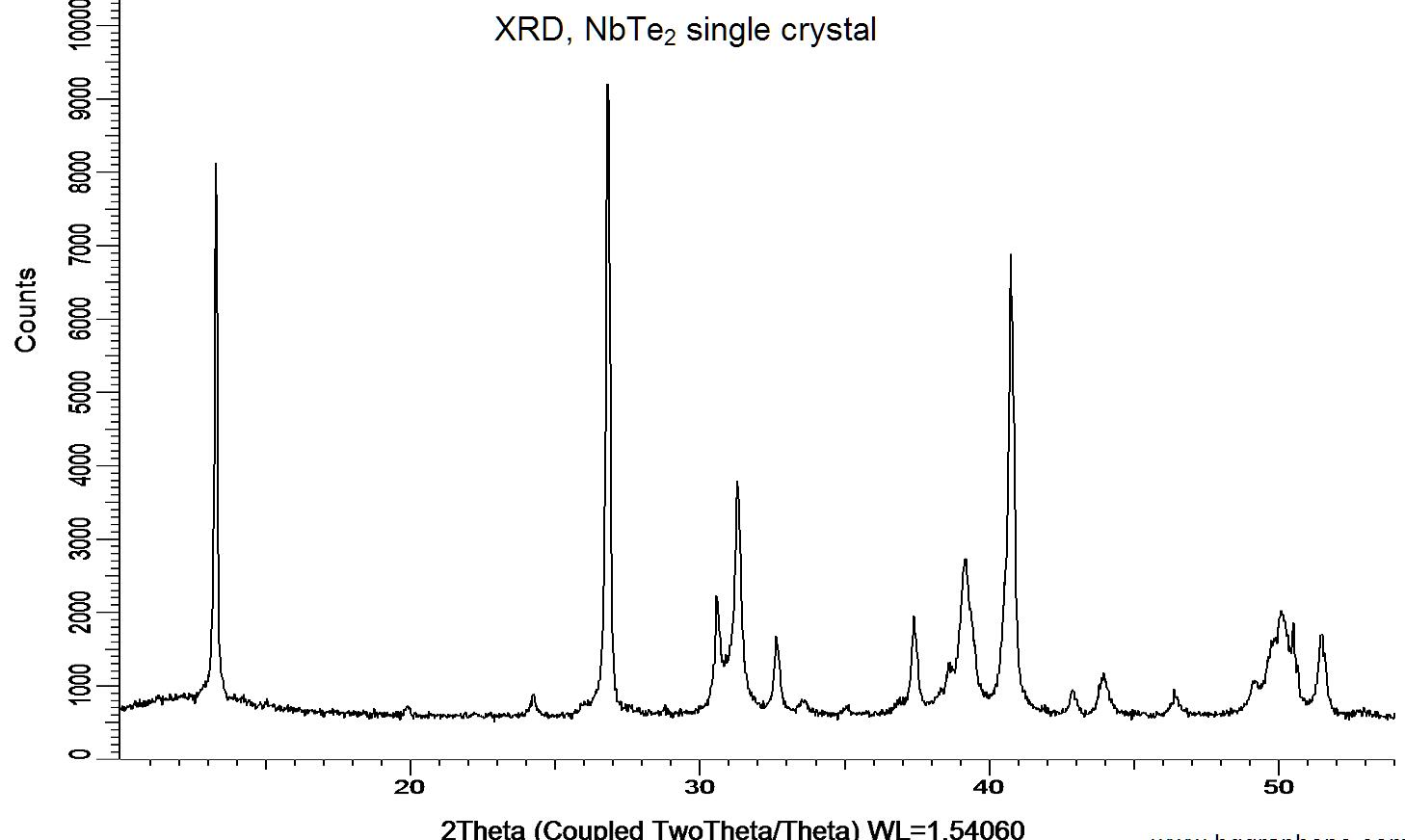

Powder X-ray diffraction (XRD) of a single crystal NbTe2. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

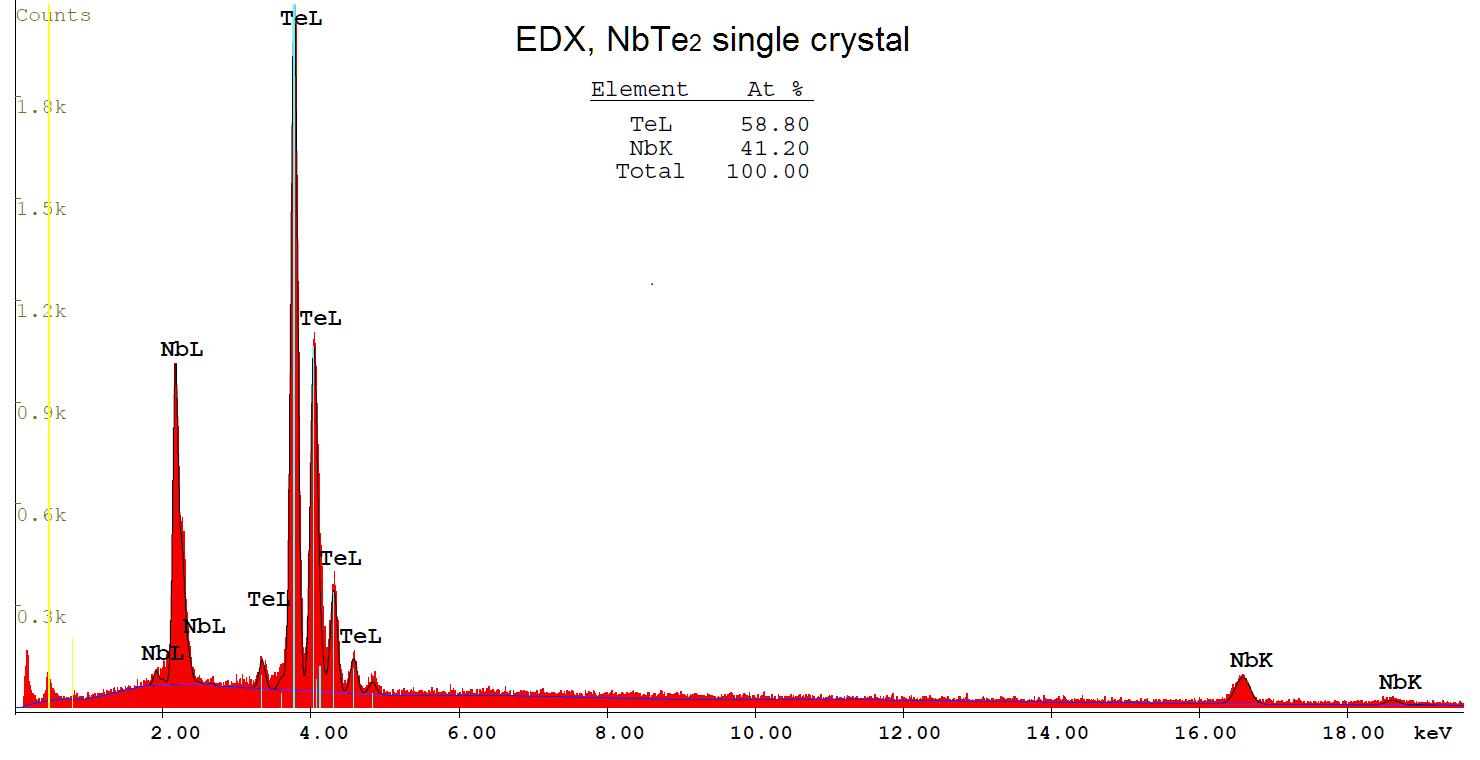

Stoichiometric analysis of a single crystal NbTe2 by Energy-dispersive X-ray spectroscopy (EDX).

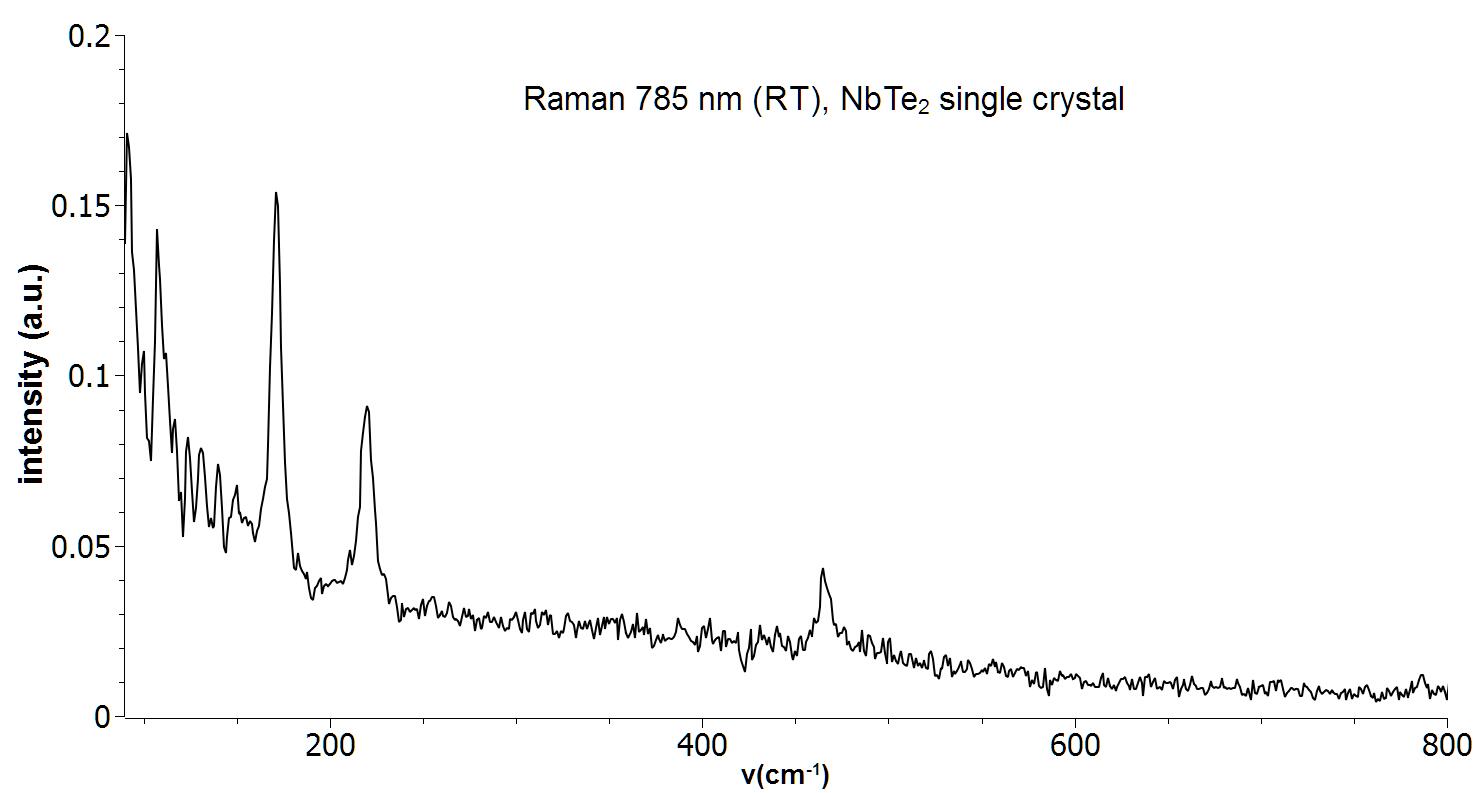

Raman spectrum of a single crystal NbTe2. Measurement was performed with a 785 nm Raman system at room temperature.
