详情

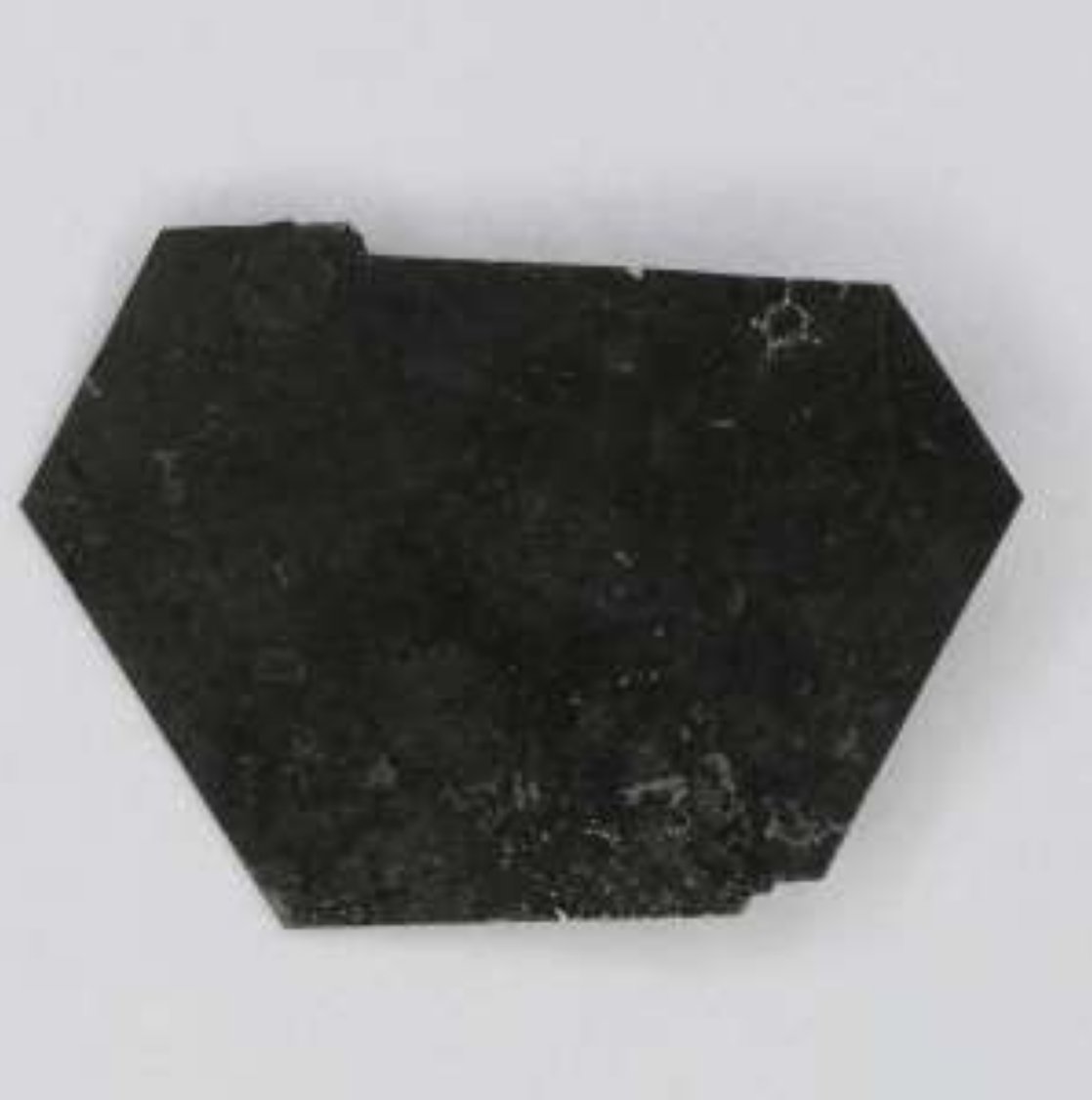

二碲化钛晶体 TiTe2(Titanium Ditelluride)
晶体尺寸：~8毫米
电学性能：半金属
晶体结构：六边形
晶胞参数：a = b = 0.377 nm, c = 0.649 nm, α = β = 90°, γ = 120°
晶体类型：合成
晶体尺寸：~8毫米
电学性能：半金属
晶体结构：六边形
晶胞参数：a = b = 0.377 nm, c = 0.649 nm, α = β = 90°, γ = 120°
晶体类型：合成
晶体纯度：＞99.995%

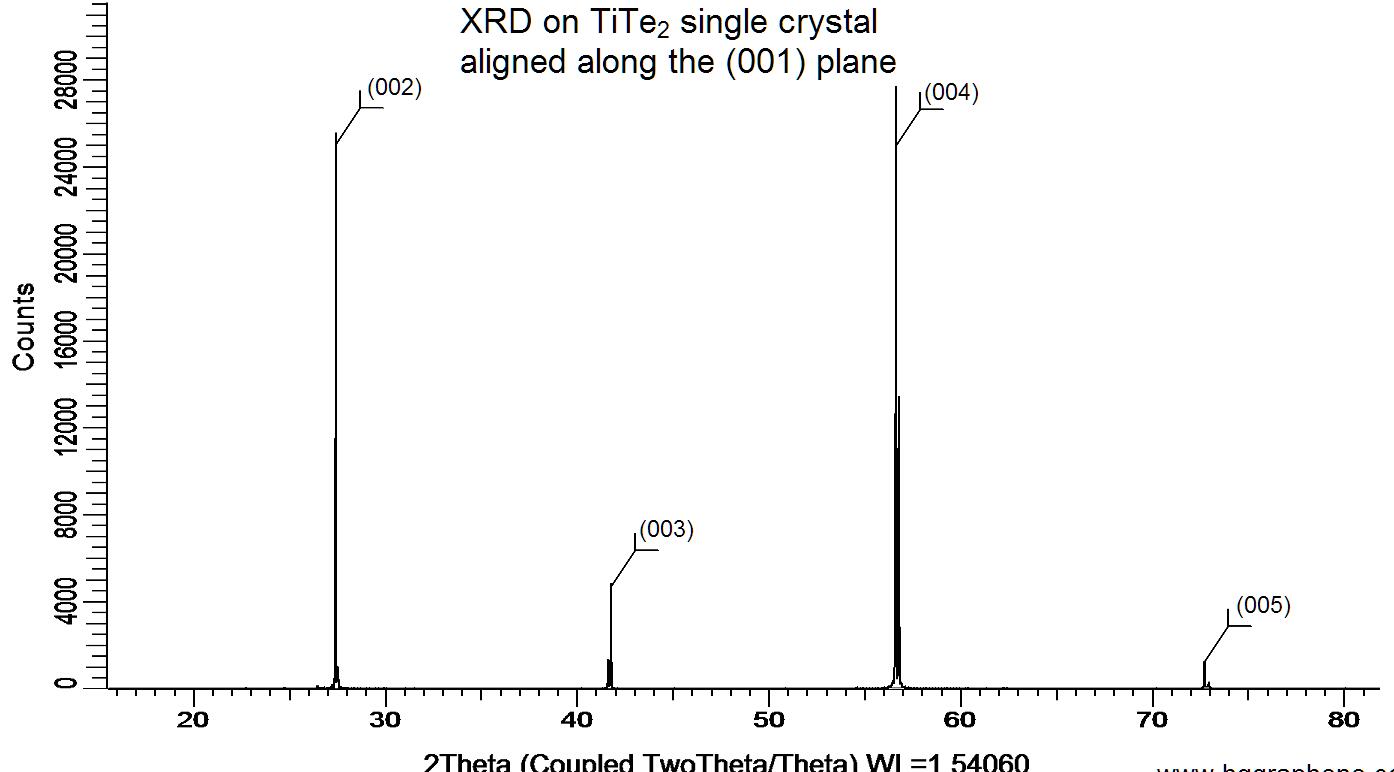

X-ray diffraction on a TiTe2 single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 4 XRD peaks correspond, from left to right, to (00l) with l = 2, 3, 4, 5

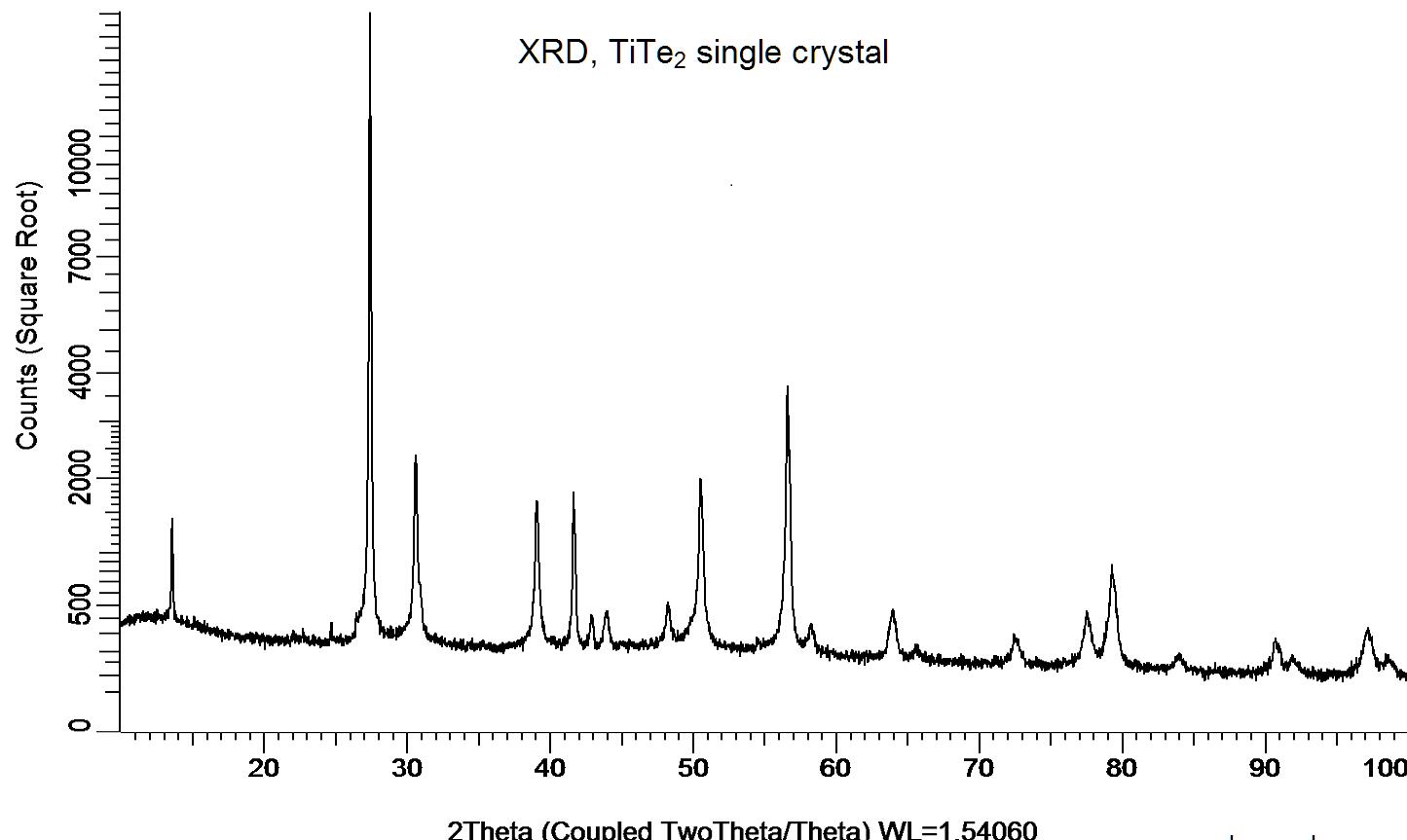

Powder X-ray diffraction (XRD) of a single crystal TiTe2. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

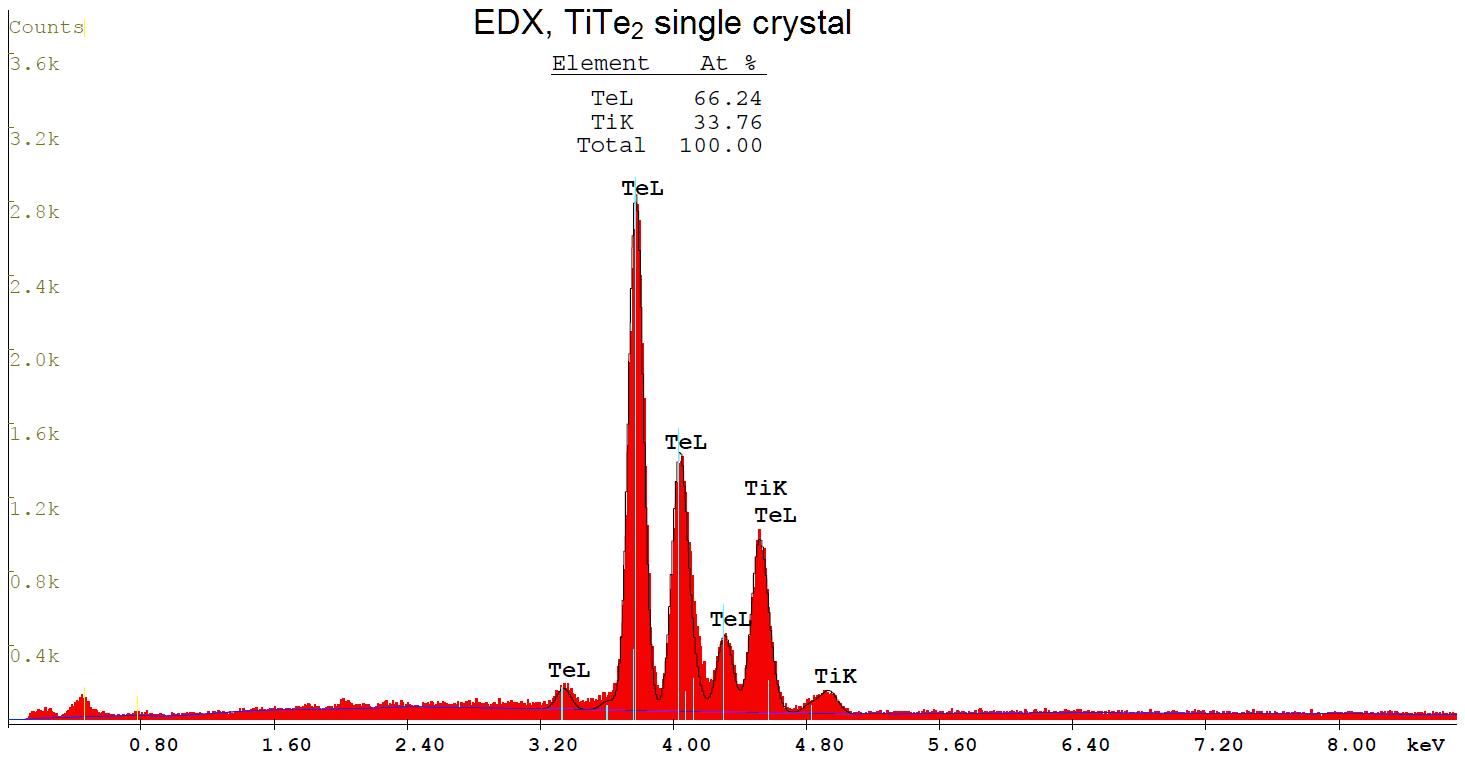

Stoichiometric analysis of a single crystal TiTe2 by Energy-dispersive X-ray spectroscopy (EDX).

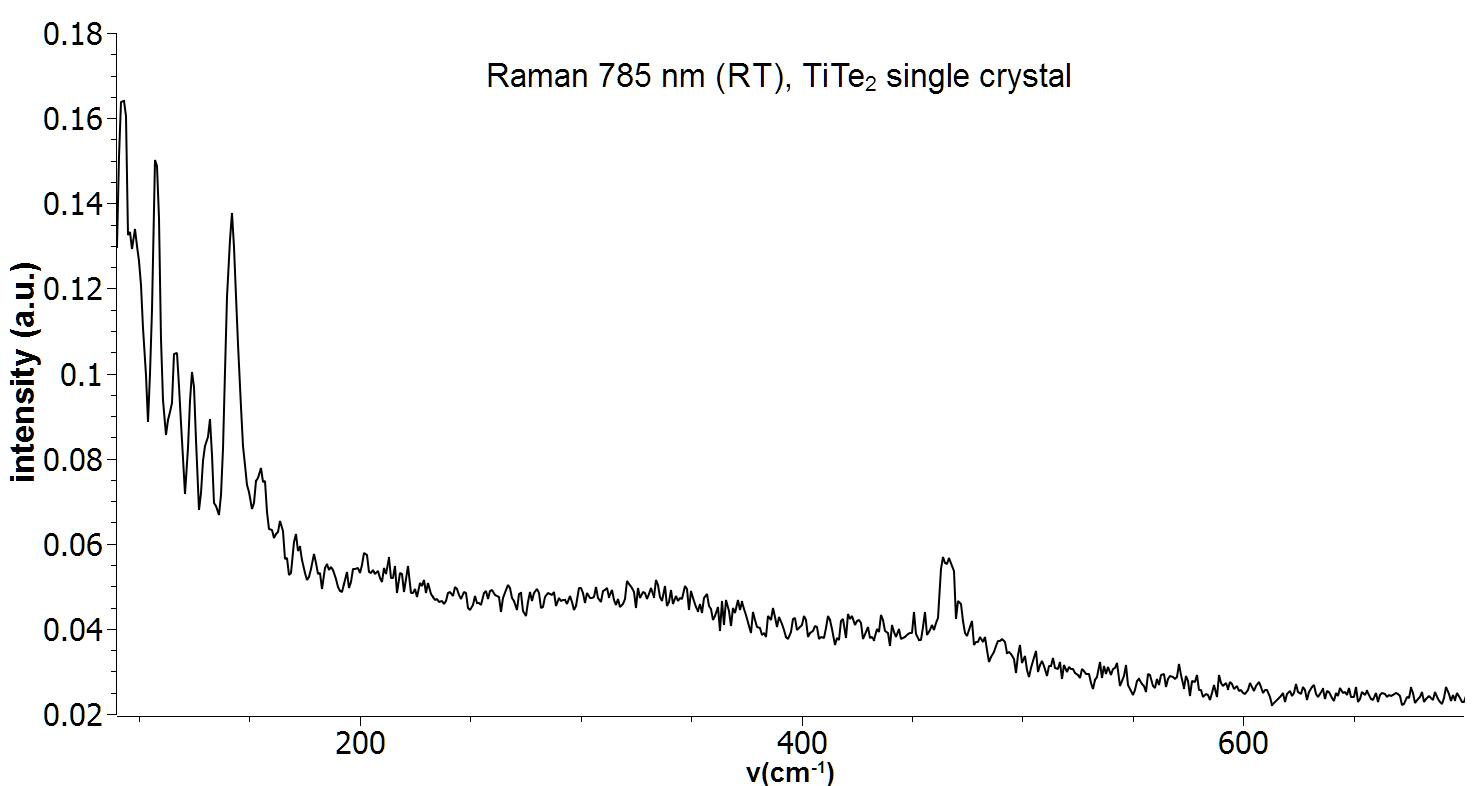

Raman spectrum of a single crystal TiTe2. Measurement was performed with a 785 nm Raman system at room temperature.
