德国HALLE深度计量校准片 PTB-Standard Depth-Setting-Standard with round grooves

价格￥ 32955.00

库存20 块

品牌HALLE

产地德国

型号KNT 2060/01

数量

立即购买加入购物车

扫一扫购买

在许多工业领域中，表面粗糙度测量起着重要的作用，德国HALLE提供各种国际标准的计较校准片，如粗糙度校准，深度校准，平坦度校准等，所有计量校准片均由PTB或DKD认证证书；

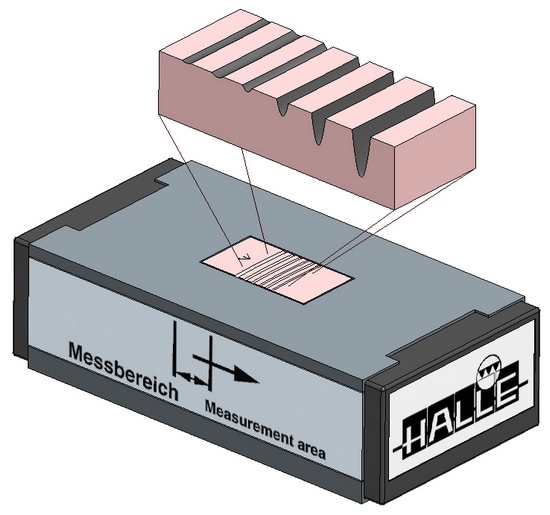

Depth-Setting-Standard with round grooves
Line of products:KNT 2060/01
Corresponding to PTB-Standard for adjusting and calibration of the vertical magnification of contact stylus instruments 3 grooves 1/4/9 um (nominal)
Item NO.:2060/01/3/PK (PTB calibration)

Designation	ISO-Type 5436-1	Design	Line of product	Picture
Stylus tip control standard	Type B	3 x 3 taper angles with 70°, 90° und 120°	KNT 4050/01

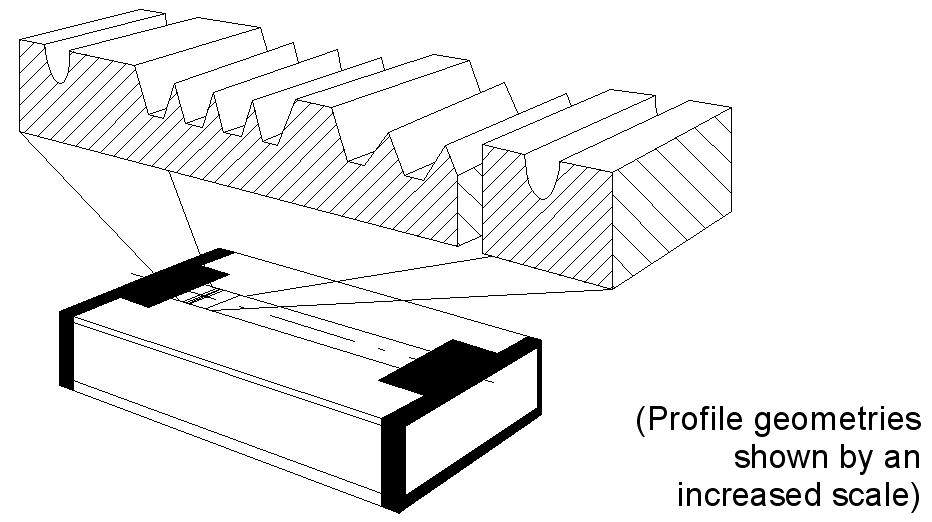

Depth setting standards	Type A	with round base grooves (6 grooves and 3 grooves)	KNT 4060/03
Depth setting standards	Type A	with planar grooves	KNT 4080/03

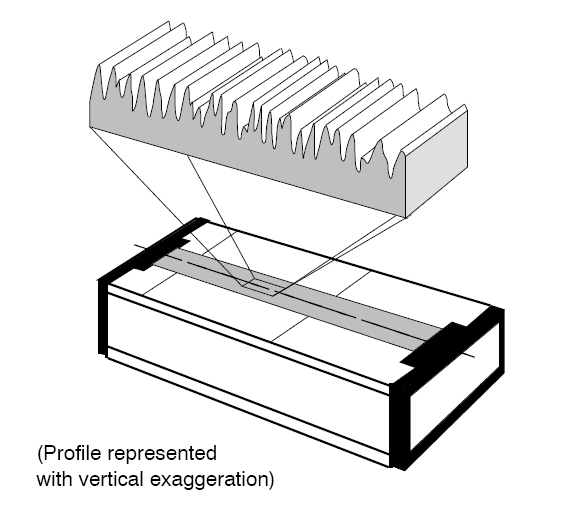

Roughness measurement standards	Type D	standard	KNT 4058/01

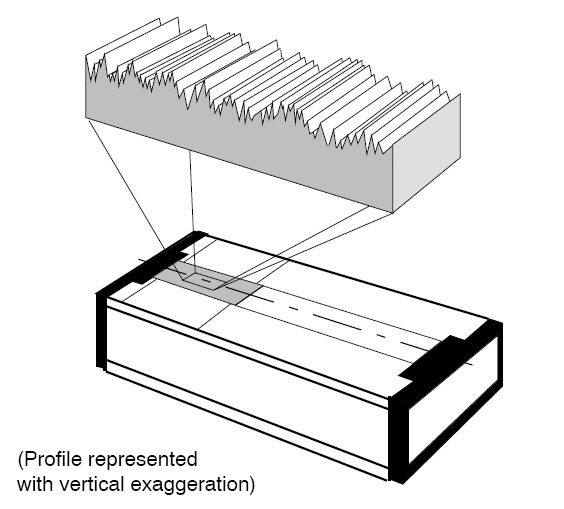

Roughness measurement standards	Type D	inexpensive version	KNT 4058/03

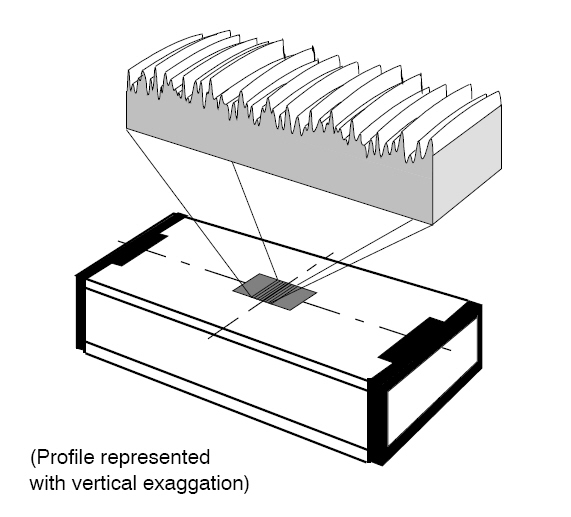

Roughness measurement standards	Type D	for sheet metal surfaces	KNT 4058/02

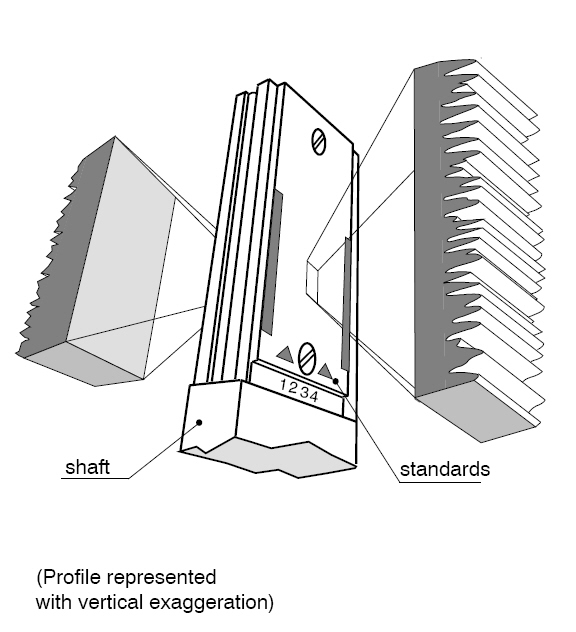

Roughness measurement standards	Type D	for sheet metal measuring stations (for 2+4 Two-Button Stylus)	KNT 2058/05

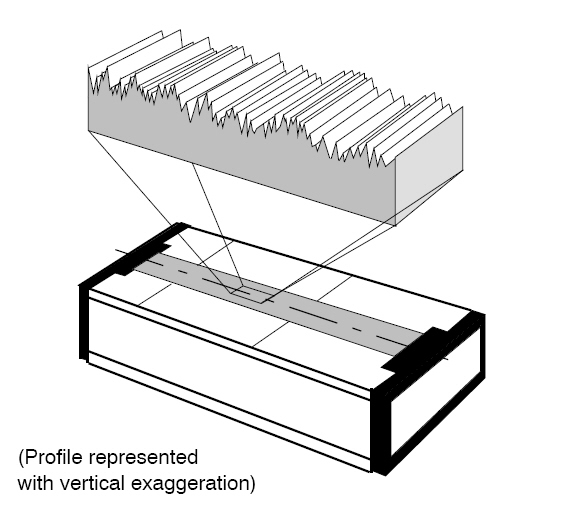

Roughness measurement standards	Type D	superfine roughness profile	KNT 4070/03
Calibration costs for recalibration
Comparison standards for surface roughness			VOR 2090/01
